문제
자율주행 골프카트는 주행 내내 자신의 위치와 자세를 정확히 알아야 하지만, 실외 환경에서 GPS 수신 품질은 항상 보장되지 않음. RTK-GPS(cm급 정밀 측위)를 쓰더라도 품질이 저하된 구간의 측정값을 그대로 믿으면 위치 추정이 흔들리고, 그 오차가 조향 제어까지 그대로 전파. 품질이 변동하는 GPS를 다른 센서와 융합해 어떤 구간에서도 안정적으로 위치·자세를 추정하는 것이 이 프로젝트의 핵심 과제.
역할
LUXROBO의 골프카트 자율주행 모듈 개발 프로젝트에서 차량 위치 추정 및 주행 제어 모듈 개발 담당. 실차 주행 로그 기반 MATLAB 시뮬레이션으로 위치 추정 구조를 선행 설계·검증하고, 펌웨어와 비교할 수 있는 검증 환경 구축. 이후 모듈을 실차에 장착해 실제 골프장 환경에서 테스트 수행.
핵심 기여
위치 추정·센서 융합
- GPS·IMU·조향각(SAS)·차속 정보를 융합해, 자전거 모델(Bicycle Model) 기반 EKF(확장 칼만 필터)와 Chi-square Gate(통계적 이상치 판별)를 적용한 실시간 위치·자세 추정 모듈 설계·구현.
- 상태 벡터를 속도(v)·슬립각(Slip Angle)·요레이트(Yaw Rate)·요각(Yaw)·위치(x, y)로 정의하고, EKF 예측·보정 구조를 단계적으로 검증.
- GPS 측정값의 유효성을 Chi-square Gate로 판별하고, GPS 품질에 따라 측정 잡음 공분산(R 행렬)을 동적으로 조정하며 INS(관성항법)/GPS 모드를 전환하는 로직을 설계해 수신 품질 변동에 강인한 추정 구조 구축.
Problem
An autonomous golf cart must know its own position and attitude accurately throughout driving, but GPS reception quality is never guaranteed in outdoor environments. Even with RTK-GPS (cm-level precision positioning), trusting measurements from quality-degraded segments as-is destabilizes the position estimate, and that error propagates directly into steering control. The core challenge of this project: fusing GPS of fluctuating quality with other sensors to estimate position and attitude reliably in every segment.
Role
Responsible for developing the vehicle localization and driving control modules in LUXROBO’s autonomous-driving module project for golf carts. Designed and validated the localization architecture in advance through MATLAB simulation based on real-vehicle driving logs, and built a validation environment comparable against the firmware. Then mounted the module on a real vehicle and conducted testing in an actual golf-course environment.
Key Contributions
Localization & Sensor Fusion
- Designed and implemented a real-time position/attitude estimation module fusing GPS, IMU, steering angle (SAS), and vehicle speed, applying a Bicycle Model-based EKF (Extended Kalman Filter) with a Chi-square Gate (statistical outlier rejection).
- Defined the state vector as velocity (v), Slip Angle, Yaw Rate, Yaw, and position (x, y), and progressively validated the EKF prediction/correction structure.
- Designed logic that determines GPS measurement validity with a Chi-square Gate, dynamically adjusts the measurement noise covariance (R matrix) based on GPS quality, and switches between INS (inertial navigation)/GPS modes — building an estimation structure robust to fluctuating reception quality.
flowchart LR
subgraph IN["Sensor Inputs"]
S1["IMU · Steering Angle (SAS) · Vehicle Speed"]
S2["RTK-GPS"]
end
P["Prediction<br>Bicycle Model-based<br>state transition matrices F, B"]
G{"Chi-square Gate<br>GPS validity check"}
R["Dynamic R matrix adjustment<br>(based on GPS quality)"]
U["Update<br>GPS Residual · Kalman Gain"]
I["INS mode<br>(prediction only)"]
X["Estimated state<br>v · Slip Angle · Yaw Rate · Yaw · x · y"]
S1 --> P
S2 --> G
S2 --> R
G -->|valid| U
G -->|rejected| I
R --> U
P --> U
U --> X
I --> X
X --> P
실시간 EKF 아키텍처 — 다이어그램은 non-production data 기반 재구성
조향 제어·경로 계획
- RTK-GPS 기반 고정밀 위치 추정 결과를 입력으로, Pure Pursuit 기반 조향 제어와 주행 경로 계획 알고리즘 개발.
검증·병목 분석
- 실차 주행 로그(.bin)를 재생하는 MATLAB 오프라인 시뮬레이션 환경을 선행 구축해, 실차 투입 전에 추정 알고리즘을 반복 검증.
- 시뮬레이션과 펌웨어 간 위치 추정 결과를 비교하는 실시간 주행 로그 재생 환경을 구축해, 구현 일치성을 비교·검증할 수 있는 기반 마련.
- 펌웨어 내부 TASK 우선순위와 실행 성능을 분석해 시스템 병목 진단.

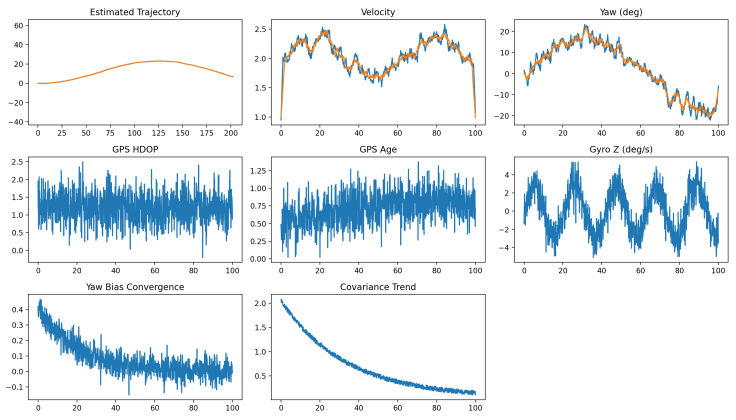

MATLAB 기반 센서 데이터 시뮬레이션 예시 — 추정 궤적·속도·Yaw·GPS 품질(HDOP/Age)·자이로·공분산 수렴 (시뮬레이션 데이터)
결과
자전거 모델 기반 EKF 예측·보정 구조를 MATLAB 시뮬레이션에서 단계적으로 검증하고, 시뮬레이션과 펌웨어 간 위치 추정 결과를 비교하는 실시간 주행 로그 재생 환경 구축. 이후 모듈을 실차에 장착해 실제 골프장 환경에서 테스트 수행.
Real-time EKF architecture — diagram reconstructed from non-production data
Steering Control & Path Planning
- Developed Pure Pursuit-based steering control and driving path planning algorithms, taking the RTK-GPS-based high-precision localization output as input.
Validation & Bottleneck Analysis
- Built an offline MATLAB simulation environment replaying real-vehicle driving logs (.bin) ahead of real-vehicle testing, enabling repeated validation of the estimation algorithm before deployment.
- Built a real-time driving-log replay environment comparing localization results between simulation and firmware, laying the groundwork for verifying implementation consistency.
- Analyzed firmware TASK priorities and execution performance to diagnose system bottlenecks.
Example of MATLAB-based sensor data simulation — estimated trajectory, velocity, Yaw, GPS quality (HDOP/Age), gyro, covariance convergence (simulation data)
Results
Progressively validated the Bicycle Model-based EKF prediction/correction structure in MATLAB simulation, and built a real-time driving-log replay environment comparing localization results between simulation and firmware. Then mounted the module on a real vehicle and conducted testing in an actual golf-course environment.
